DFS SECURITY ANCHORS
The DFS Security Anchor is tamper and vibration resistant and works in all poured concrete and brick materials.
Carbon Steel with Heat Treated Setting Pin
| SIZES AVAILABLE |
| Item Number |
Qty |
Description |
| 14134FS |
100 |
1/4 x 1 3/4 |
| 14238FS |
100 |
1/4 x 2 3/8 |
| 56234FS |
100 |
5/16 x 2 3/4 |
| 56400FS |
100 |
5/16 x 4 |
| 38238FS |
100 |
3/8 x 2 3/8 |
| 38312FS |
100 |
3/8 x 3 1/2 |
| 38500FS |
50 |
3/8 x 5 |
| 12234FS |
50 |
1/2 x 2 3/4 |
| 12312FS |
50 |
1/2 x 3 1/2 |
| 12434FS |
50 |
1/2 x 4 3/4 |
| 12600FS |
30 |
1/2 x 6 |
| 58400FS |
30 |
5/8 x 4 |
| 58600FS |
25 |
5/8 x 6 |
| 34500FS |
20 |
3/4 x 5 |
| 34600FS |
20 |
3/4 x 6 |
Special "Security Nut" can be threaded onto anchor body for either Round Head or Flat Head applications. |
| |
| Anchor Size Dia. x Length |
Thread Length (In.) |
Maximum Thickness Fastened |
* Min.
Embedment |
Drill Size |
| 1/4 x 1 3/4 |
5/8 |
1/2 |
1 |
1/4 |
| 1/4 x 2 3/8 |
3/4 |
7/8 |
1 |
1/4 |
| 5/16 x 2 3/4 |
1 |
1 1/4 |
1 1/4 |
5/16 |
| 5/16 x 4 |
1 1/4 |
2 1/2 |
1 1/4 |
5/16 |
| 3/8 x 2 3/8 |
1 |
5/8 |
1 1/2 |
3/8 |
| 3/8 x 3 1/2 |
1 1 /8 |
1 3/4 |
1 1/2 |
3/8 |
| 3/8 x 5 |
2 |
3 1/4 |
1 1/2 |
3/8 |
| 1/2 x 2 3/4 |
1 |
3/4 |
2 |
1/2 |
| 1/2 x 3 1/2 |
1 1/8 |
1 1/2 |
2 |
1/2 |
| 1/2 x 4 3/4 |
2 |
2 3/4 |
2 |
1/2 |
| 1/2 x 6 |
2 |
4 |
2 |
1/2 |
| 5/8 x 4 |
1 5/8 |
1 1/2 |
2 1/2 |
5/8 |
| 5/8 x 6 |
2 |
3 1/2 |
2 1/2 |
5/8 |
| 3/4 x 5 |
2 |
2 1/4 |
3 |
3/4 |
| 3/4 x 6 |
2 |
3 1/4 |
3 |
3/4 |
| |
TEST PERFORMANCE DATA |
| |
2000 PSI CONCRETE |
|
4000 PSI CONCRETE |
| |
Tension |
Shear |
|
Tension |
Diameter |
Min.
Embed. |
Max.
Embed. |
Min.
Embed. |
|
Min.
Embed. |
Max.
Embed. |
| 1/4" |
(1") 900 |
(1 1/2") 1000 |
(1") 1600 |
|
(1") 1300 |
(1 1/2") 1400 |
| 5/16" |
(1 1/4") 1400 |
(1 7/8") 1500 |
(1 1/4") 3000 |
|
(1 1/4") 2100 |
(1 7/8") 2400 |
| 3/8" |
(1 1/2") 2200 |
(2 1/4") 2800 |
(1 1/2") 3400 |
|
(1 1/2") 3200 |
(2 1/4") 3700 |
| 1/2" |
(2") 3600 |
(3") 4200 |
(2") 7200 |
|
(2") 5600 |
(3") 5700 |
| 5/8" |
(2 1/2") 5400 |
(3 3/4") 6600 |
(2 1/2") 9200 |
|
(2 1/2") 7500 |
(3 3/4") 10,400 |
| 3/4" |
(3") 7500 |
(4 1/2") 9900 |
(3") 13,500 |
|
(3") 9500 |
(4 1/2") 13,400 |
DFS Security Anchors comply with these industry standards:
Meets City of Los Angeles Approval REF: 25109
Meets or exceeds G.S.A. Standards G.S.A. FF-S-325, Group V, Type 2, Class 2
Meets load factors in compliance with A.N.S.I. A58.1
Meets plating standards in complicance with A.S.T.M. B-633
Products tested in accordance with A.S.T.M. E-488.88
Tests conducted by CTI Engineering - Walnut Creek, CA 1993
A safety factor of 4:1, or 25% of ultimate, should be used.
Critical applications (vibratory loads, overhead installations, etc.)
may require a safety factor of as much as 10:1 or more.
What advantages are there?
Unlike other security type anchors...no special tools and no welding are required to secure anchor. A hammer is all you need.
Only one anchor to be inventoried for round head and flat head applications. |
- Tamper resistant and vibration resistant
- reversible nut for round or flat head styles
- Carbon steel anchor body and nut eith hard hardened setting pin
|
- High pull-out and shear strength
- Security nuts are included
- Available in open stock boxes or bulk
|

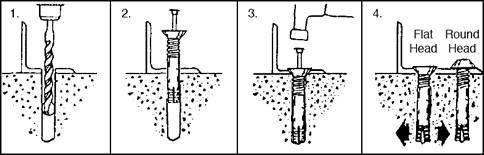

Installation Procedure
- Drill hole of sufficient depth using same diameter DFS Drill Bit as anchor being installed.
- Select head style (round/flat)...then turn Security Nut flush with the top of anchor. Insert anchor into predrilled hole.
- Drive in Set Pin with hammer until flush. Use 2-3 lb. hammer for small anchors and 4-5 lb. hammer for medium and large anchors.
- Slotted anchor base expands into concrete. Anchor is set!
Where do I use DFS Sleeve Anchors: |
- Prison Furniture
- Burglar Bars
- Security Door Frames
- Motion Detectors
- Fencing
- Lock Boxes
- Money Meters
- Vending Machines
|
- Benchs
- Light Fixtures
- Playground Equipment
- Thresholds
- Stadium Seating
- Cash Machines
- Mail Boxes
- Door Frames
|
|
